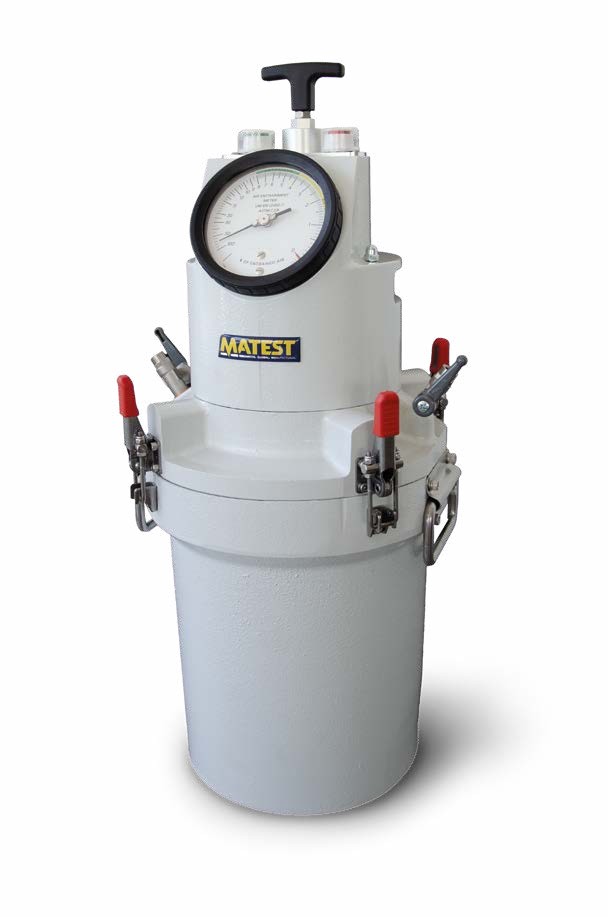

Air Entrainment Meter

Made in: Italy

Air Entrainment Meter is a precision concrete testing instrument used to measure the air content of fresh concrete. It is ideal for quality control, laboratory testing, and field testing of concrete mixes.

Product Overview

Air Entrainment Meter – Precision Concrete Air Content Testing Equipment

STANDARDS: EN 12350-7 | ASTM C231

The Air Entrainment Meter is a reliable concrete testing instrument designed to determine the air content of fresh concrete accurately and efficiently. It is widely used in construction laboratories, ready-mix concrete plants, civil engineering projects, and field quality-control applications.

Proper control of entrained air is essential for achieving the desired durability, workability, and freeze-thaw resistance of concrete. This instrument provides a practical solution for checking the air content of fresh concrete in accordance with applicable concrete testing procedures.

Key Features

Accurate measurement of air content in fresh concrete
Suitable for laboratory and field applications
Robust construction for demanding testing environments
Easy-to-use operating mechanism
Clear and easy-to-read measurement scale
Suitable for quality control of concrete mixtures
Designed for routine concrete testing applications
Helps maintain consistent concrete mix quality

Applications

The Air Entrainment Meter is commonly used for:

Fresh concrete air content testing
Concrete mix quality control
Ready-mix concrete testing
Construction site quality inspection
Civil engineering laboratories
Concrete research and development
Infrastructure and building construction projects

Key Features

Feature information is available on request.

Technical Specifications

ApplicatThe air content in fresh concrete is a critical parameter for assessing concrete's behaviour when exposed to weathering and for monitoring changes in air content resulting from the application of chemical additives to enhance workability. This apparatus is designed by Matest to determine the percentage of air contained in a fresh concrete mixture, in accordance with a pressure-equalization process. The device features an aluminium pressure chamber where air pressure is manually generated using an integrated hand pump. Upon opening an overflow valve, the system achieves pressure balance with the test pot, filled with the fresh mortar or concrete. The resultant pressure reduction serves as an indicator of the material's air content and appears on the connected pressure gauge. The air entrainment meter can also be used for measuring the unit weight of fresh concrete and aggregates.ion

Accessories

Accessory information is available on request.
