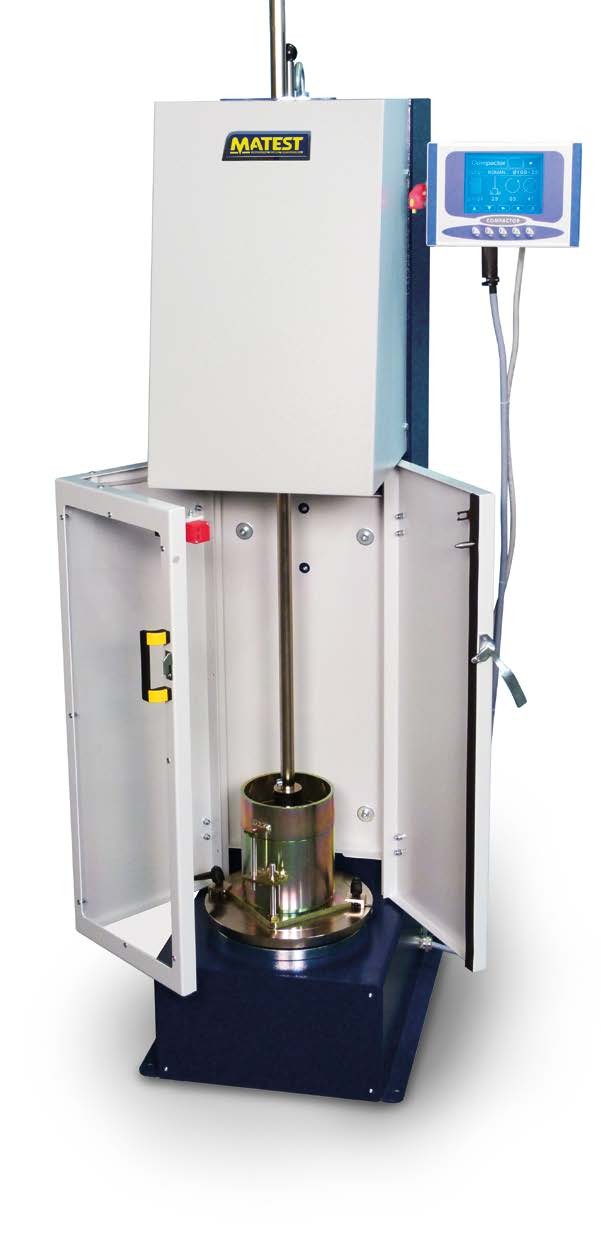

Automatic Programmable Proctor / CBR Compactor with Microprocessor

Made in: Italy

Automatic programmable Proctor and CBR compactor with microprocessor control for precise and repeatable soil compaction testing in geotechnical laboratories.

Product Overview

Automatic Programmable Proctor / CBR Compactor with Microprocessor is a high-performance laboratory instrument designed for the automatic compaction of soil specimens used in Proctor Compaction and California Bearing Ratio (CBR) tests.

The equipment is equipped with an advanced microprocessor control system, allowing users to program and control test parameters with high accuracy and repeatability. It provides automatic operation, reducing operator influence and ensuring consistent compaction energy according to international testing standards.

This system is ideal for soil mechanics, geotechnical engineering, civil engineering, road construction, and material testing laboratories.

Key Features:

Automatic operation for Proctor and CBR tests

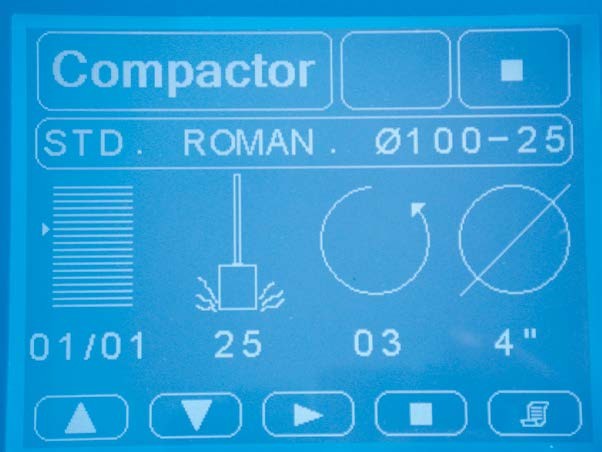

Advanced microprocessor control system
Programmable compaction parameters
High precision and repeatability
Suitable for Standard and Modified Proctor tests
Compatible with CBR specimen preparation
User-friendly interface
Robust and durable construction
Manufactured in Italy

Applications:

Proctor compaction testing
CBR sample preparation
Soil density determination
Highway and pavement engineering
Geotechnical investigations
Civil engineering laboratories
Construction quality control

Key Features

Feature information is available on request.

Technical Specifications

The original lift system of the rammer can be selected12” or 18”, or at 300 or 450 mm, granting a correct and constant fall height. Rammer drop speed: 1 blow each 2 seconds.

The compactor accepts moulds havingØ 4” and 6”, 100 and 150 mm, both Matest made or from other producers, thanks to its universal mould fixing system.

Power supply230V 1ph 50Hz 500W

Accessories

STANDARD RAMMER Ø 50 ± 0.2 mm and 2500 ± 10 g weight
