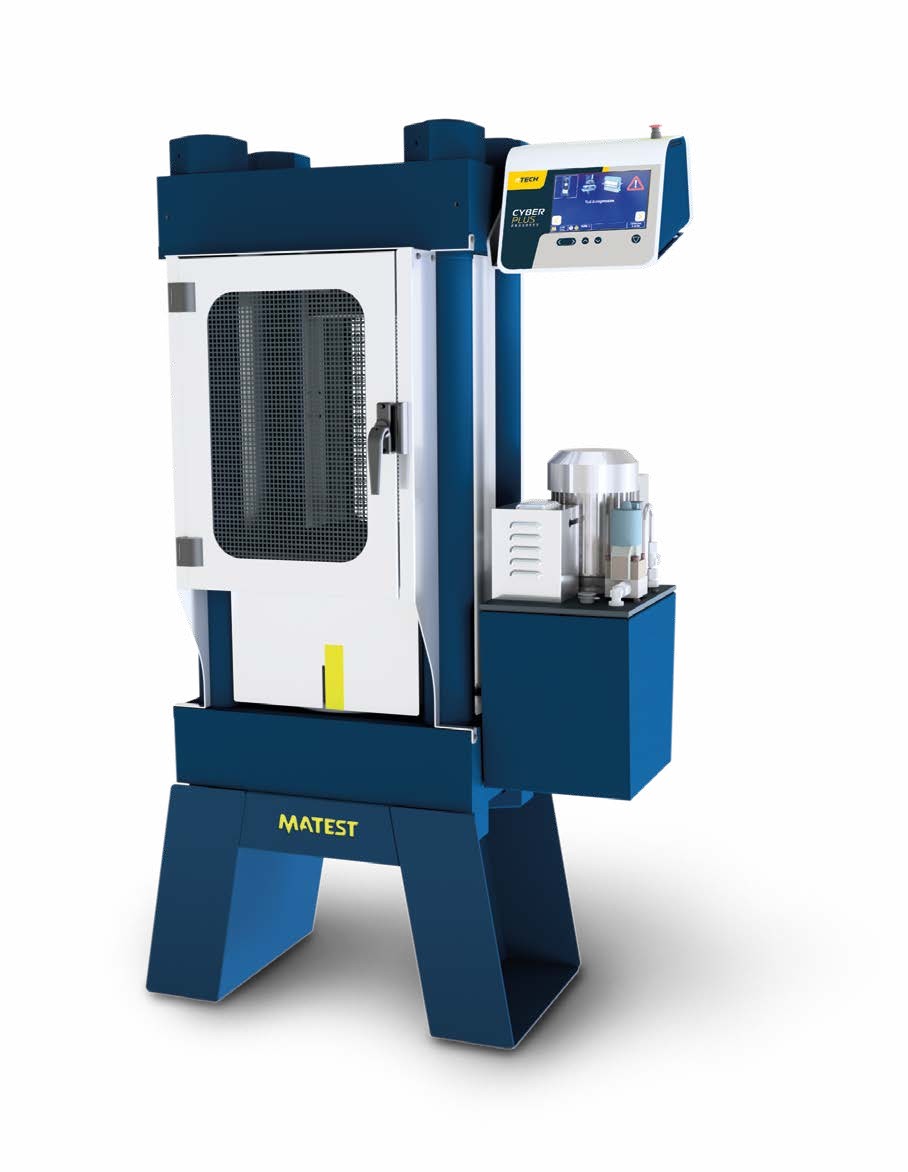

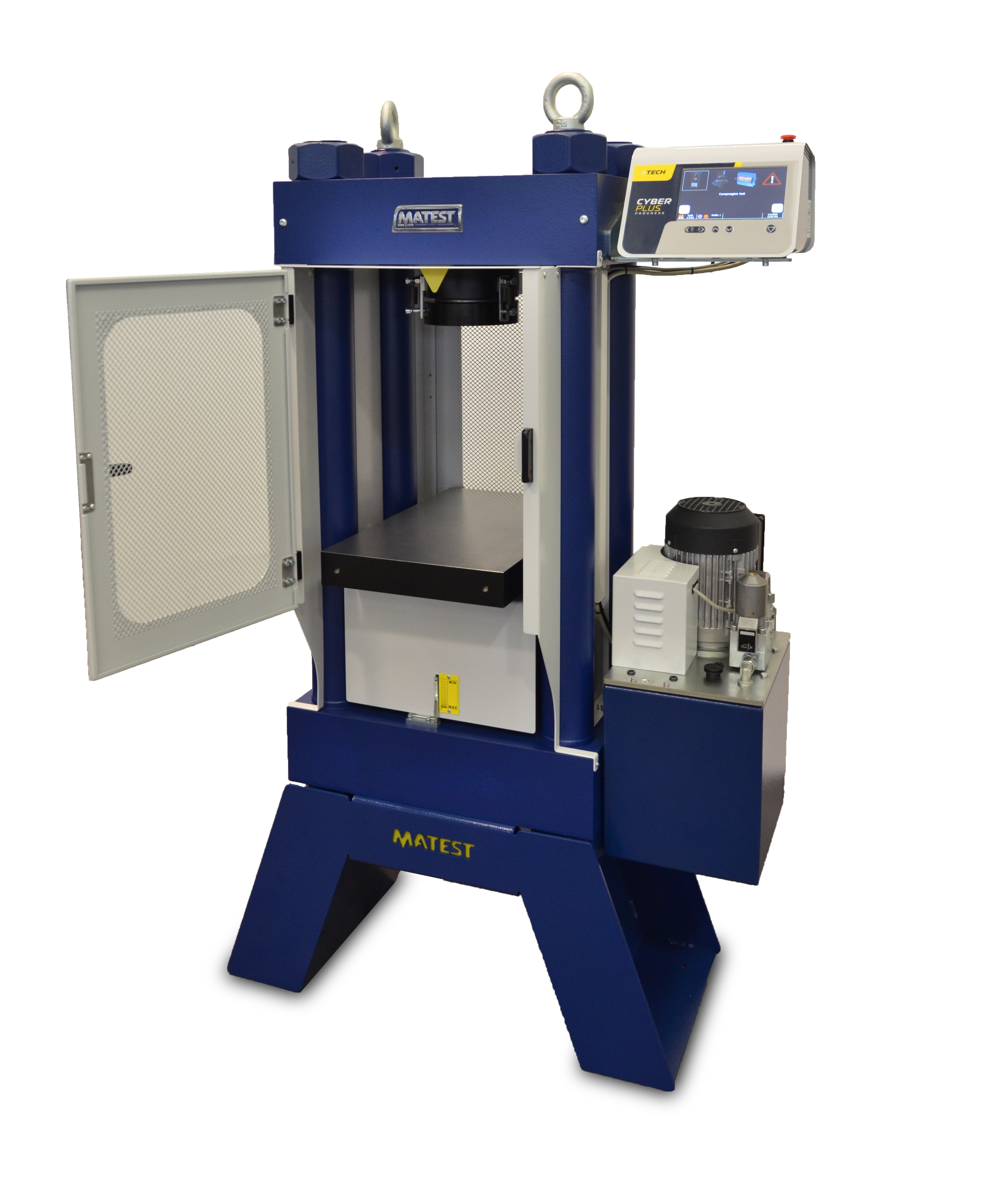

Compression Testing Machine 2000 kN High Stiffness

Made in: Italy

2000 kN High Stiffness Compression Testing Machine designed for accurate and reliable compression strength testing of concrete and other construction materials in civil engineering laboratories.

✓ Max. vertical daylight: 387 mm / 15’’ Upper compression platen: 165 mm / 6.5’’ Calibration accuracy: Class 1 Max. ram travel: 60 mm / 2.3’’ approx. High stiffness and heavy weight 4 columns frame Weight: 1000...1070 kg / 2200…2360 lb

Product Overview

Compression Testing Machine 2000 kN High Stiffness

TO TEST CYLINDERS Ø100X200 MM / 4’’X8’’ AND Ø150X300 MM / 6’’X12’’
STANDARDS: ASTM C39 | AASHTO T22

The Compression Testing Machine 2000 kN High Stiffness is a high-capacity laboratory testing machine designed for accurate determination of the compressive strength of concrete and construction materials. With a maximum testing capacity of 2000 kN, it is suitable for demanding laboratory and quality-control applications.

Its high-stiffness frame provides excellent stability during testing, helping to ensure reliable and repeatable test results. The machine is suitable for concrete cubes, cylinders, blocks and other suitable compression test specimens used in civil engineering and construction material testing.

Key Features

Maximum testing capacity: 2000 kN
High-stiffness and robust testing frame
Designed for concrete compression strength testing
Suitable for laboratory and quality-control applications
Stable and reliable testing performance
Suitable for testing concrete cubes and cylinders
High-capacity solution for civil engineering laboratories
Manufactured in Italy
Designed for accurate and repeatable compression testing

Applications

The machine is suitable for:

Concrete compressive strength testing
Concrete cube testing
Concrete cylinder testing
Construction material quality control
Civil engineering laboratories
Ready-mix concrete testing
Building and infrastructure projects
Research and material testing laboratories

Key Features

✓ Max. vertical daylight: 387 mm / 15’’ Upper compression platen: 165 mm / 6.5’’ Calibration accuracy: Class 1 Max. ram travel: 60 mm / 2.3’’ approx. High stiffness and heavy weight 4 columns frame Weight: 1000...1070 kg / 2200…2360 lb

Technical Specifications

Thanks to the distance piece included (15 mm / 0.6’’ high), the vertical daylight is reduced to 372 mm / 14’’ which is optimal for cylinders Ø150x300 mm or 6’’x12’’ equipped with capping retainers. The large bottom platen is suitable also to be used as a work surface, so that the sample can be fitted with capping retainers directly on the platen and then simply slid in the correct position for the load application.

Accessories

Accessory information is available on request.
