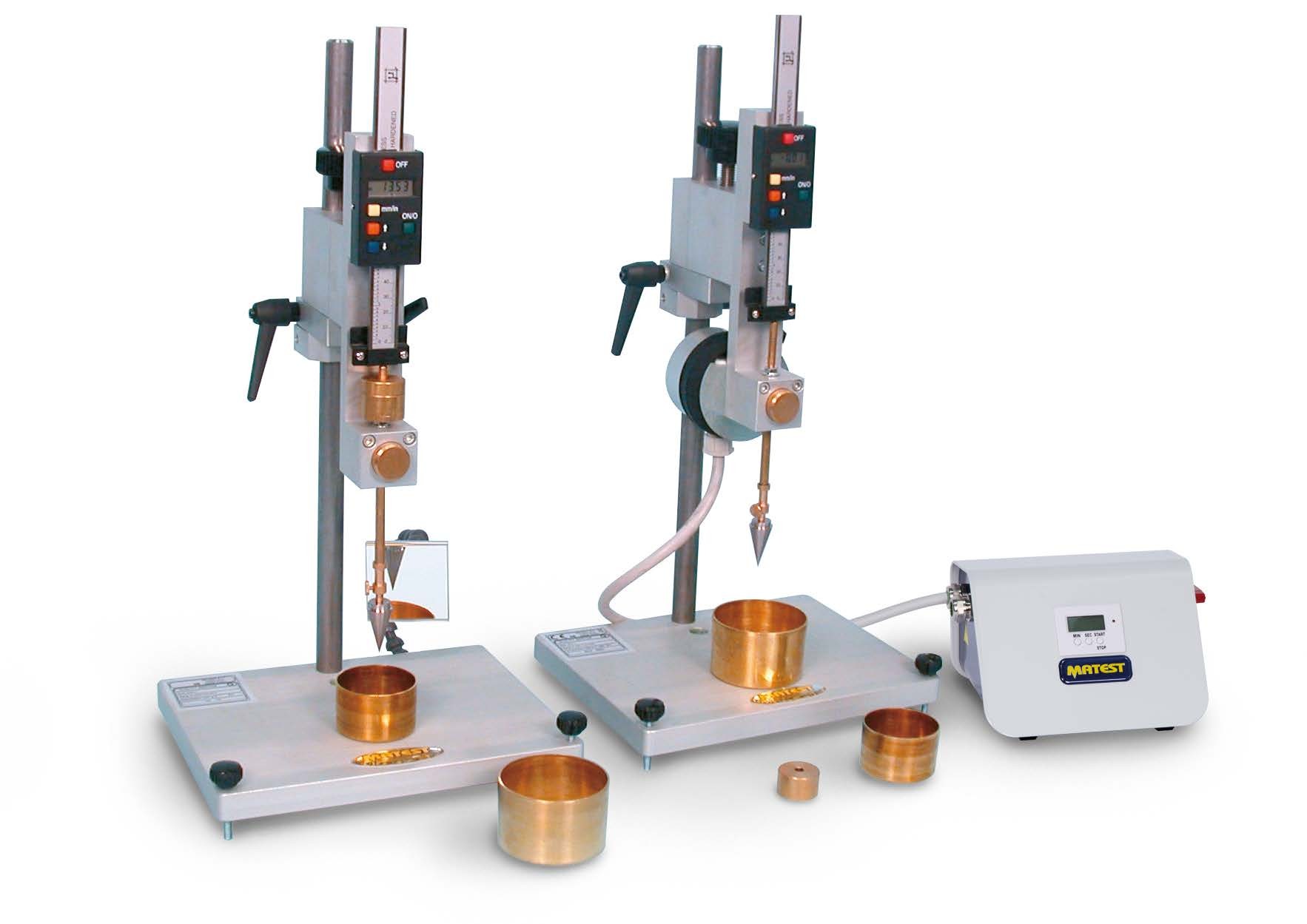

Cone Digital Penetrometer

Cone Digital Penetrometer is a precision laboratory instrument designed to measure the penetration resistance of soil using a standardized cone. It is widely used for evaluating the consistency and mechanical characteristics of fine-grained soils.

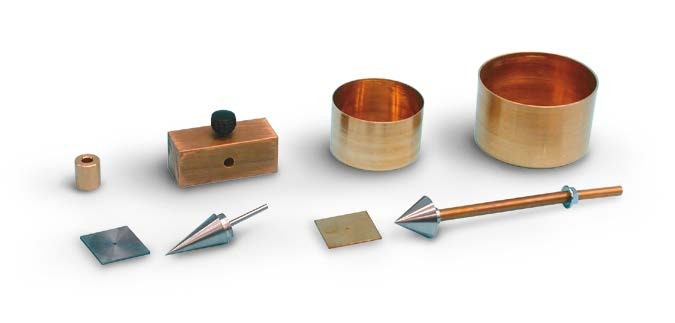

The cone penetrometer consists of:
- Aluminium base with levelling screws and spirit level.
- Chromed vertical rod with micrometric vertical displacement
device.
- Digital readout of the penetration values.
- Readings in mm and inch, with 0.1 mm resolution. LCD 5 digits
display, with zero set in any position.
Power: 1.5V battery.
- Slider, brass made, with free fall, stop and release push button,
automatic zero set.
- Stainless steel penetration test cone 35 mm long, 30° angle.


The digital measuring system provides convenient and accurate readings, making the instrument suitable for routine soil testing and quality control applications in geotechnical, civil engineering and soil mechanics laboratories.

Key Features:

• Digital measurement system for easy reading
• Designed for soil penetration resistance testing
• Suitable for laboratory soil consistency evaluation
• Accurate and repeatable measurements
• User-friendly operation
• Robust construction for laboratory use
• Suitable for geotechnical and civil engineering applications
• Manufactured in Italy

Applications:

• Soil mechanics testing
• Geotechnical laboratories
• Civil engineering laboratories
• Soil consistency evaluation
• Construction quality control
• Research and educational laboratories
