Aggregate & Rocks Testing
DIGITAL POINT LOAD TESTER

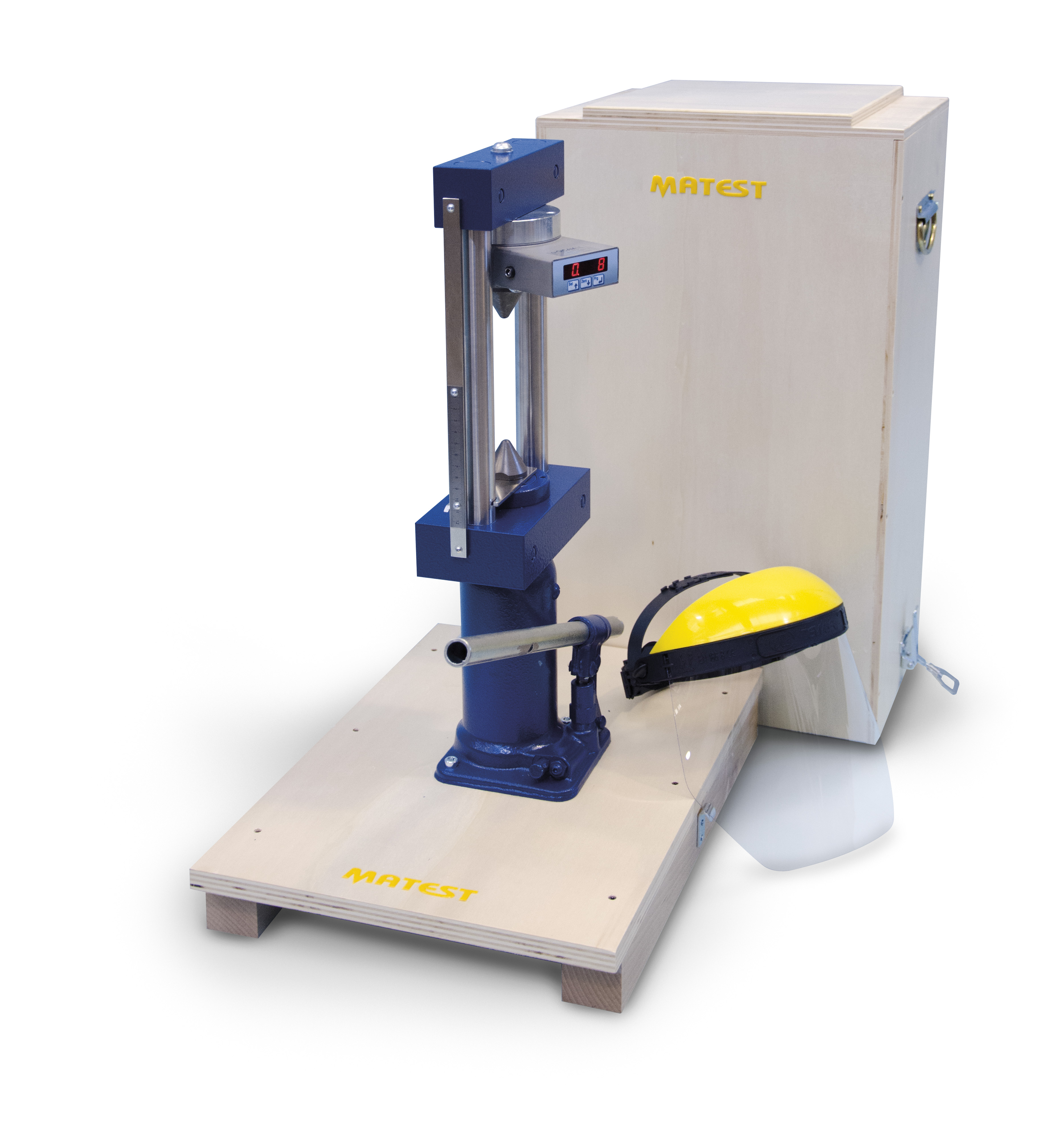

DIGITAL POINT LOAD TESTER 56 KN (ROCK STRENGTH INDEX)STANDARDS: ASTM D5731 | ISRMUsed to determine the strength values of a rock specimen both in the field and in the laboratory.It consists of a load frame for applying loads, on which a manual hydraulic jack is mounted.The applied load is measured by a high precision electric load cellwith a digital display unit range 0-56 kN proving:
- 65.000 divisions 0.001 kN resolution
- Linearity: 0.05% Hysteresis: 0.03%
- Repeatability: 0.02%
- ✓ High precision electric load cell.
- ✓ Capacity 56 kN. (100 kN mod. A126)
- ✓ Core specimens up to 4" (101.6 mm).
- ✓ Easy reading of the distance between the conical
- ✓ points thanks to a graduated scale.
Product Overview
DIGITAL POINT LOAD TESTER 56 KN (ROCK STRENGTH INDEX)STANDARDS: ASTM D5731 | ISRMUsed to determine the strength values of a rock specimen both in the field and in the laboratory.It consists of a load frame for applying loads, on which a manual hydraulic jack is mounted.The applied load is measured by a high precision electric load cellwith a digital display unit range 0-56 kN proving:
- 65.000 divisions 0.001 kN resolution
- Linearity: 0.05% Hysteresis: 0.03%
- Repeatability: 0.02%
Key Features
- ✓ High precision electric load cell.
- ✓ Capacity 56 kN. (100 kN mod. A126)
- ✓ Core specimens up to 4" (101.6 mm).
- ✓ Easy reading of the distance between the conical
- ✓ points thanks to a graduated scale.
Technical Specification
Dimensions370x520x720 mm
Weight28 kg approx.
