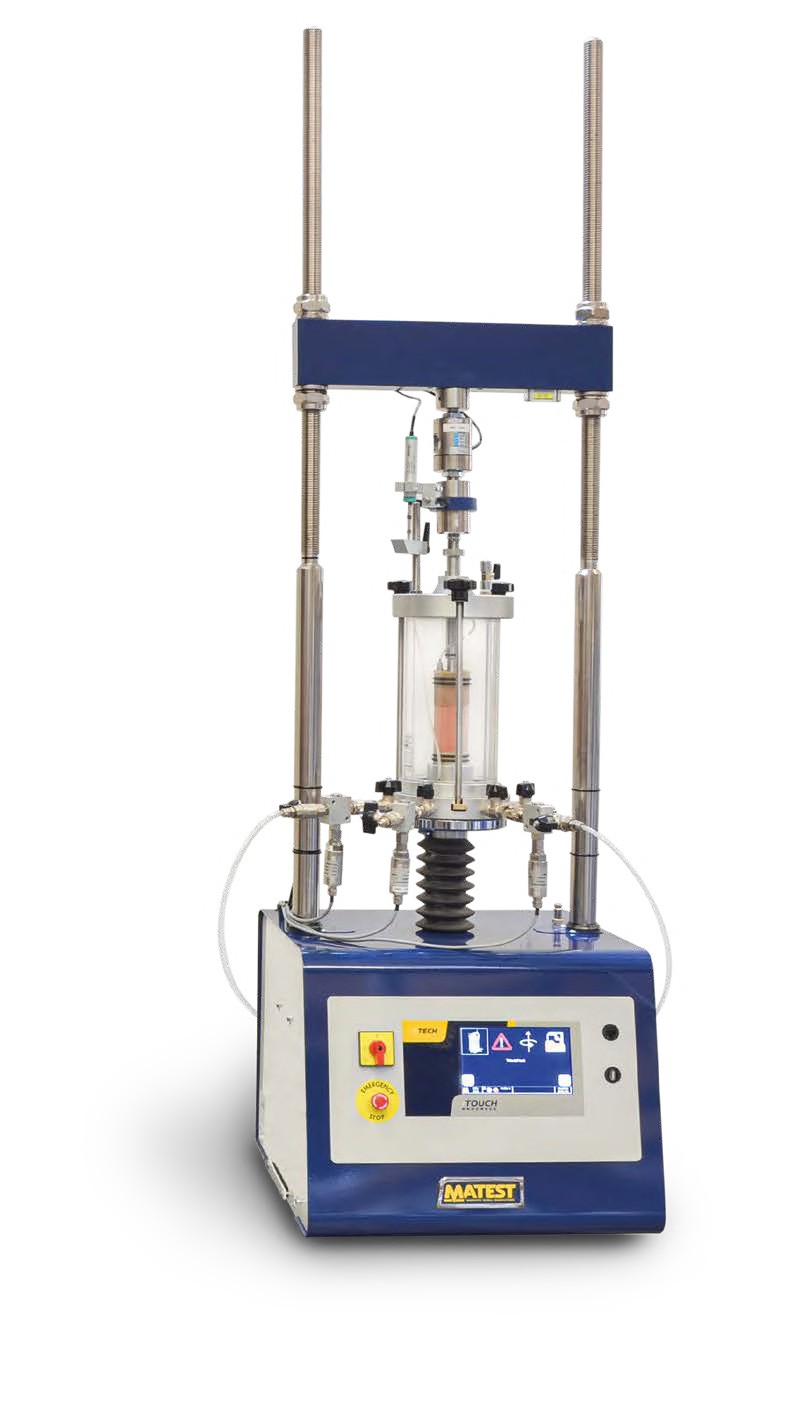

Digital touch-screen triaxial Test Machine

Triaxial Load Frame 50 kN with Digital Touch-Screen is a precision laboratory loading system designed for use with triaxial testing equipment to evaluate the stress-strain and shear strength characteristics of soil specimens.

The 50 kN capacity provides controlled and stable axial loading during triaxial tests. The digital touch-screen interface allows convenient control and monitoring of the testing process, making the system suitable for advanced geotechnical and soil mechanics laboratories.

This versatile, compact, heavy duty load frame has been designed for routine tests, for central laboratories, but also for research purposes.
The frame is of rigid chromed steel twin column construction.
The electronic color digital touch-screen display with microprocessor control system allows to perform tests within a speed range of 0.00001 to 12 mm/min.

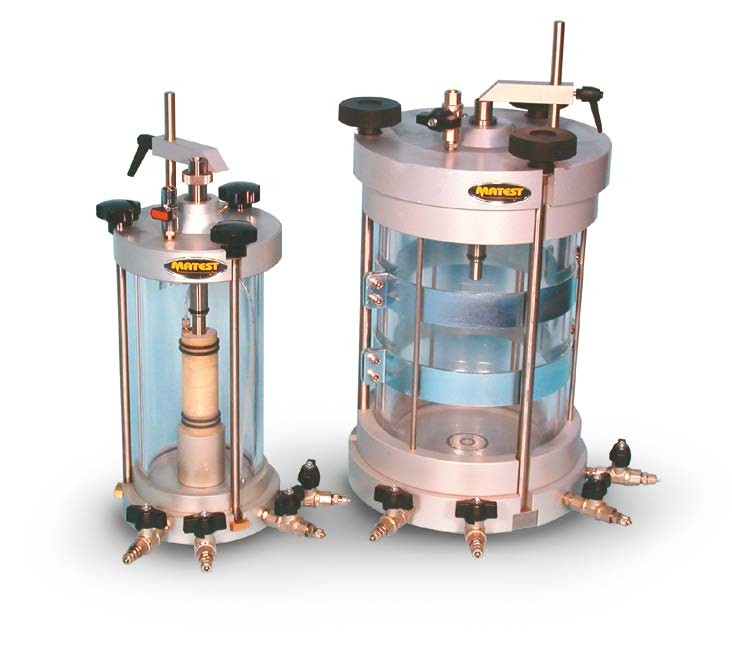

The maximum load capacity is 50 kN, and it is suitable either for cells S305 (max. specimen size 70x140 mm) and S306N (max. specimen size 100x200 mm).

FIRMWARE

• Electronic control unit Cyber-plus Progress with touch-screen color graphic display, that runs like a standard PC for the management of the data.
• The machine can perform the tests without any external PC, because of the “Cyber-Plus” grants performances like a PC.
• Direct connection to Intranet (connection to a LAN network) and Internet to establish a remote communication and receive an immediate diagnosis from Matest technicians, or for upgrades of the Firmware.
• Unlimited memory storage with: 1 USB port, 1 SD card.
• The machine is equipped with 8 connectors for the acquisition and data processing system up to 8 analogical/digital channels (that is activated with the S301-05 optional firmware) for load cells and transducers. Extra slot available to expand the on-board channels to 16

Key Features:

• Maximum load capacity: 50 kN
• Digital touch-screen control interface
• Controlled and precise axial loading
• Suitable for soil triaxial testing
• Accurate measurement and monitoring of test parameters
• Smooth and stable loading operation
• Robust construction for laboratory applications
• Suitable for routine and advanced geotechnical testing
• Manufactured in Italy

HARDWARE

• Maximum Sample Diameter: 150 mm
• Minimum testing speed: 0.00001 mm/min
• Maximum testing speed: 100 mm/min
• Maximum compression force: 50 kN
• Minimum vertical clearance: 315 mm
• Maximum vertical clearance: 1112 mm
• Horizontal clearance: 380 mm
• Platen diameter: 156 mm
• Platen travel: 100 mm

Applications:

• Triaxial soil testing
• Soil shear strength determination
• Stress-strain analysis
• Geotechnical investigations
• Foundation engineering studies
• Slope stability investigations
• Soil mechanics laboratories
• Civil engineering laboratories
• Research and educational institutions
