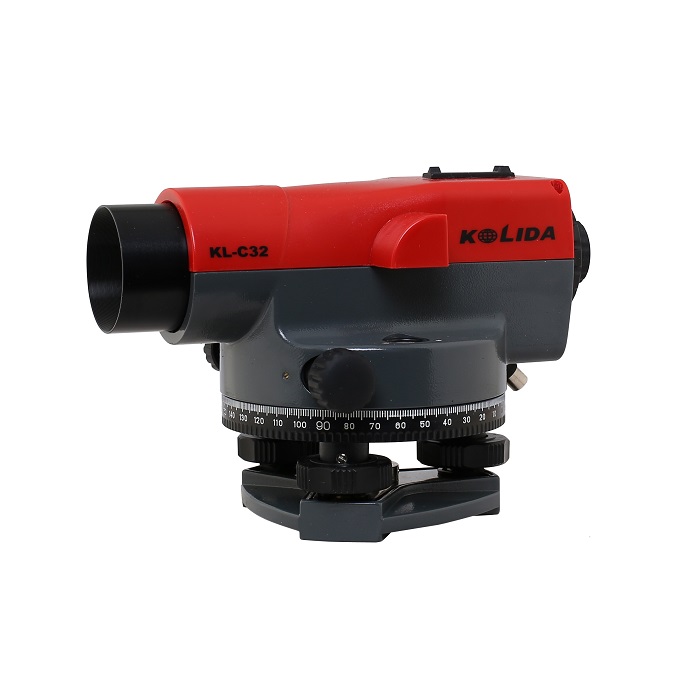

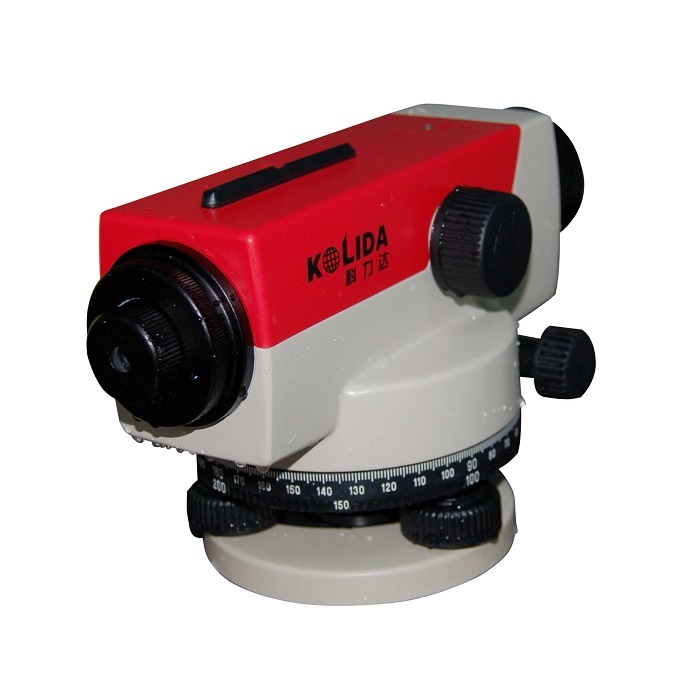

KOLIDA KL-C32 Automatic Leveling Machine

KOLIDA KL-C32 Automatic Leveling Machine is a high-precision automatic optical level designed for professional surveying, construction, engineering, and geodetic applications. The instrument combines reliable automatic leveling performance with clear optical viewing, making it suitable for accurate elevation and leveling measurements in demanding field environments.

The KL-C32 features a 32X magnification telescope with a 40 mm objective aperture, providing a clear and bright erect image for accurate staff readings. Its automatic air-damping compensator helps maintain a stable horizontal line of sight after the instrument has been properly leveled.

With a leveling accuracy of ±1.0 mm per 1 km double-run leveling, the KOLIDA KL-C32 is suitable for applications such as construction site leveling, road construction, land surveying, geodetic control, and 3rd and 4th order leveling.

The instrument also offers a ±15′ compensator working range, 0.3 m minimum focusing distance, and a 360° horizontal circle, providing flexibility for professional surveying operations.

Key Features

• 32X optical magnification

• ±1.0 mm accuracy per 1 km double-run leveling

• 40 mm objective aperture

• Automatic air-damping compensator

• ±15′ compensator working range

• 0.3 m minimum focusing distance

• Erect telescope image

• 1°20′ field of view

• 360° horizontal circle

• Suitable for 3rd and 4th order leveling

• Designed for geodetic and construction surveying

• Suitable for road and engineering projects

• Operating temperature: −30°C to +50°C

• Standard 5/8″ × 11 tripod thread

Applications

The KOLIDA KL-C32 Automatic Level can be used for:

• Land and topographic surveying

• Construction site leveling

• Road and highway construction

• Building construction

• Geodetic control surveys

• Elevation measurement

• Engineering surveying

• 3rd and 4th order leveling

• Industrial surveying

• Site preparation and earthwork

Technical Specifications

SpecificationDetails

ModelKL-C32

Instrument TypeAutomatic Optical Level

Magnification32X

Leveling Accuracy±1.0 mm / 1 km double-run

Objective Aperture40 mm

Compensator TypeAir Damping

Compensator Working Range±15′

Minimum Focusing Distance0.3 m

Field of View1°20′

Telescope ImageErect

Horizontal Circle360°

Circular Level Sensitivity8′ / 2 mm

Operating Temperature−30°C to +50°C

Tripod Thread5/8″ × 11

KOLIDA KL-C32 is an excellent choice for professionals looking for a dependable and accurate automatic optical leveling instrument for surveying and construction applications.
