Asphalt & Bitumen Testing

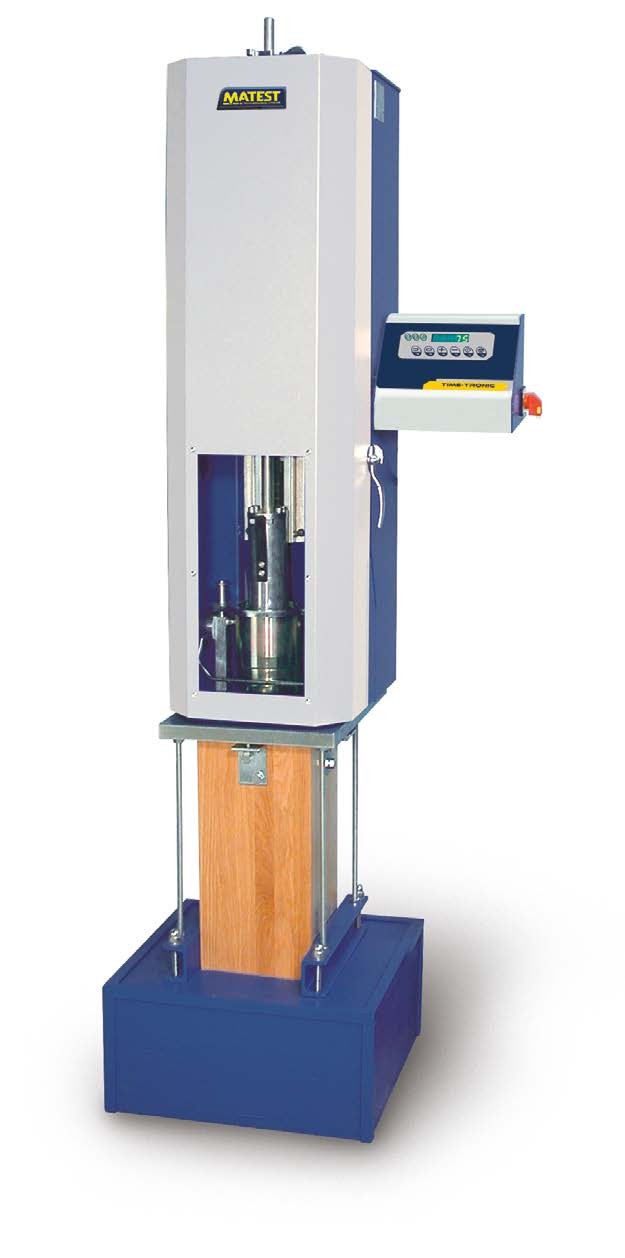

MARSHALL AUTOMATIC EN (IMPACT) COMPACTOR
STANDARDS: EN 12697-10, 12697-30 | comparable to: BS 598:107
This ruggedly constructed apparatus automatically compacts the bituminous mixture and stops off the motor after the preset numberof blows has been completed on the automatic digital display counter.The trip mechanism is structured so that the sliding hammer falls at the same height at every blow.The mould is held in position by a fast clamping device.The compactor includes a vibrated concrete base where a laminate hardwood block is mounted.
When opened it stops automatically and cannot operate.The control panel can be wall fixed or placed on a bench.All moving parts are quickly/easily accessible for maintenance.
The compactor is supplied complete, except for the mould that must be ordered separately.
This ruggedly constructed apparatus automatically compacts the bituminous mixture and stops off the motor after the preset numberof blows has been completed on the automatic digital display counter.The trip mechanism is structured so that the sliding hammer falls at the same height at every blow.The mould is held in position by a fast clamping device.The compactor includes a vibrated concrete base where a laminate hardwood block is mounted.
When opened it stops automatically and cannot operate.The control panel can be wall fixed or placed on a bench.All moving parts are quickly/easily accessible for maintenance.
The compactor is supplied complete, except for the mould that must be ordered separately.

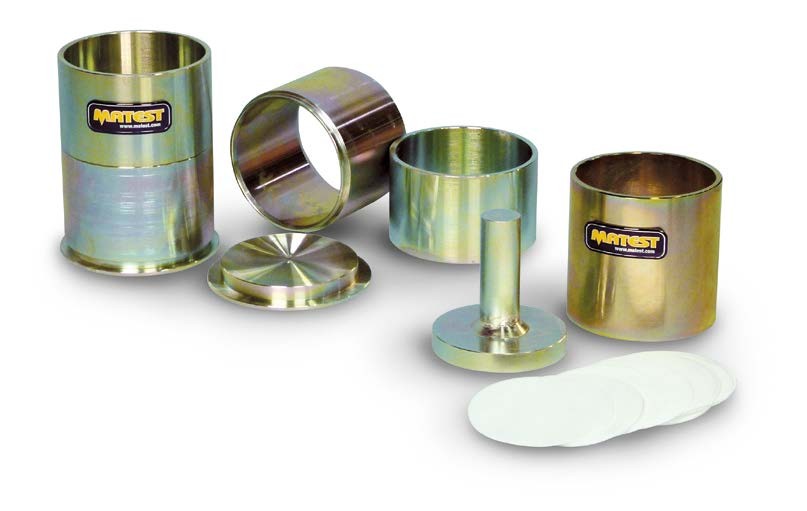

- ✓ MARSHALL COMPACTION MOULD, Ø 4”
Product Overview
STANDARDS: EN 12697-10, 12697-30 | comparable to: BS 598:107
This ruggedly constructed apparatus automatically compacts the bituminous mixture and stops off the motor after the preset numberof blows has been completed on the automatic digital display counter.The trip mechanism is structured so that the sliding hammer falls at the same height at every blow.The mould is held in position by a fast clamping device.The compactor includes a vibrated concrete base where a laminate hardwood block is mounted.
When opened it stops automatically and cannot operate.The control panel can be wall fixed or placed on a bench.All moving parts are quickly/easily accessible for maintenance.
The compactor is supplied complete, except for the mould that must be ordered separately.
This ruggedly constructed apparatus automatically compacts the bituminous mixture and stops off the motor after the preset numberof blows has been completed on the automatic digital display counter.The trip mechanism is structured so that the sliding hammer falls at the same height at every blow.The mould is held in position by a fast clamping device.The compactor includes a vibrated concrete base where a laminate hardwood block is mounted.
When opened it stops automatically and cannot operate.The control panel can be wall fixed or placed on a bench.All moving parts are quickly/easily accessible for maintenance.
The compactor is supplied complete, except for the mould that must be ordered separately.
Key Features
- ✓ MARSHALL COMPACTION MOULD, Ø 4”
Technical Specification
Total weight of the compaction hammer (Rod + Foot + Sliding mass)7850 ± 50 g
Sliding mass weight4535 ± 15 g
Free fall height457 ± 5 mm
Blow frequency50 blows in 55/60 seconds
Power supply230V 1ph 50Hz 300W
Dimensions500x500x1890 mm
Weight220 kg approx.
Accessories
CABINET, lined with sound-proofing material for noise reduction within CE limits. Compaction Hammer complete FILLING COLLAR EXTRACTION PLATE, to eject specimens from the mould. It is used in conjunction with B030-04 receiver SPECIMEN RECEIVER, used to receive the specimens ejected by the B030-03 extruder Overall Dimensions: 800x670x2250 mm approx. Internal Dimensions: 652x623x2173 mm Weight: 100 kg approx.
