Plate Bearing Test Equipment

Made in: Italy

Plate Bearing Test Equipment for determining the bearing capacity and deformation characteristics of soil and foundation materials in field and geotechnical testing applications.

Product Overview

STANDARDS: ASTM D1194, D1195, D1196 | BS 1377:9 | CNR N° 92 and 146 | UNE 7391 | Comparable to DIN 18134

Plate Bearing Test Equipment is designed to evaluate the bearing capacity, load-settlement relationship and deformation characteristics of soil under a loaded plate. The test is widely used in geotechnical engineering to assess soil performance for foundations, roads, pavements and other construction projects.

The equipment applies a controlled load to a rigid bearing plate and measures the resulting settlement, providing valuable information for evaluating the load-bearing behavior of soil and subgrade materials.

This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements.
A wide range of plate bearing test equipment is available, together with many accessories according to the different Standards and specific end-user needs.

Key Features:

Designed for plate bearing load testing
Measures soil bearing capacity and settlement
Suitable for geotechnical field investigations
Provides reliable load-settlement data
Robust construction for demanding testing environments
Suitable for foundation and pavement investigations
Ideal for civil and geotechnical engineering applications
Manufactured in Italy

Applications:

Soil bearing capacity testing
Foundation investigation
Road and pavement subgrade evaluation
Settlement and deformation analysis
Geotechnical site investigation
Soil and subgrade quality assessment
Civil engineering construction projects
Research and testing laboratories

Key Features

Feature information is available on request.

Technical Specifications

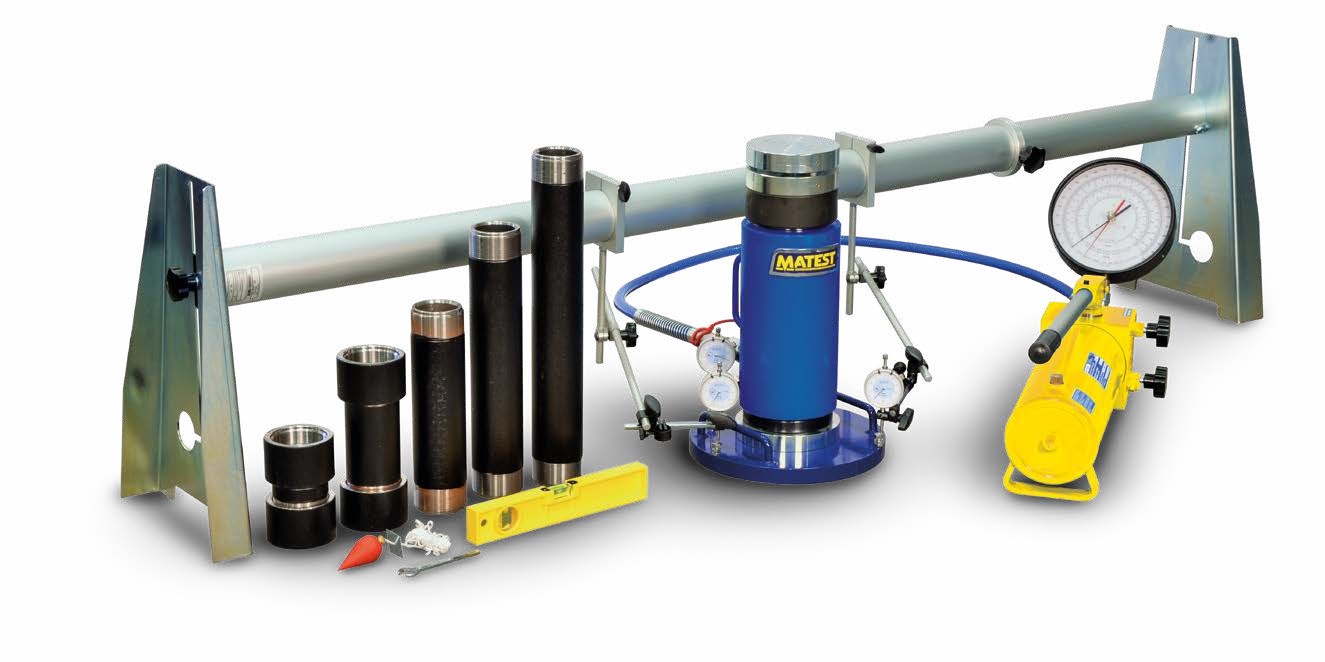

100 KN to 500 KN CAPACITY - 1 DIAL GAUGE MODEL ANALOGUE MEASURING SYSTEM WITH DIAL MANOMETER STANDARD: CNR N° 146, method “A”100 KN to 500 KN CAPACITY

Hydraulic jack 100-500 kN capacity, complete with hand pump, rubber pipe with fast connector, set of extension rods of different lengths, carrying caseAnalogue pressure gauge 0-100 kN, div. 0.5 kN,Load plate Ø 300 mm,Device for centre dial gauge measure, with spherical seat.

Datum bar assembly, 2.5 m long, telescopic, aluminium made, adjustable in height, complete with base supports, plumb and spirit level. Packed separately.Dial gauge 25x0.01 mm

Accessories

Articulated dial gauge support with adjustment device.
