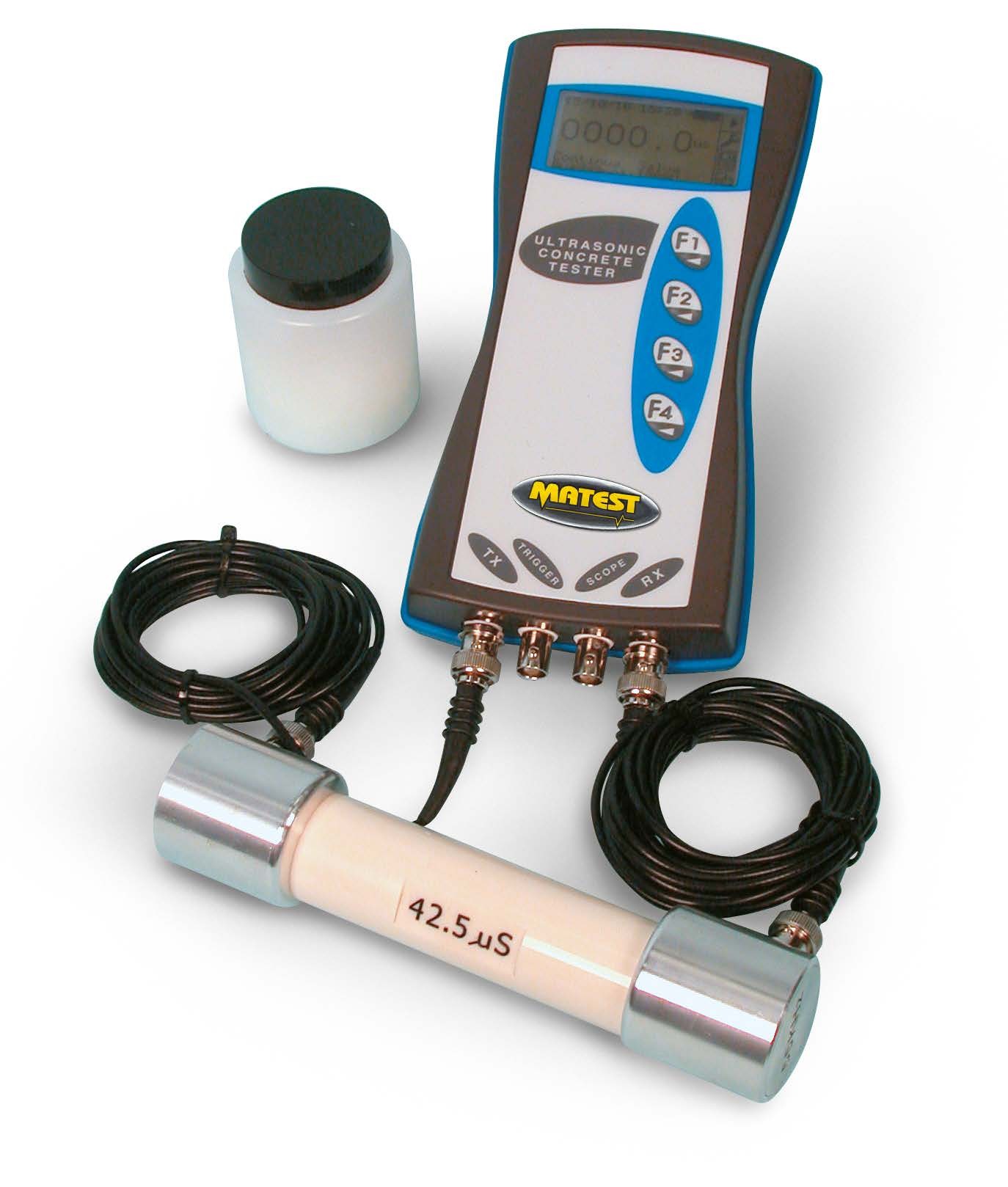

Ultrasonic Pulse Velocity Tester – High Technology
Ultrasonic Pulse Velocity Tester is designed for non-destructive testing and evaluation of concrete quality, uniformity, and internal conditions. It is suitable for civil engineering laboratories, construction quality control, research institutions, and t
- ✓ Non-destructive test to determine cracks, voids, faults presence in concrete structures. LCD display 128x60 pixel. Battery operated rechargeable. Portable with anti-shock case. Supplied complete with calibrating cylinder and contact paste.
Product Overview
STANDARDS: EN 12504-4 | ASTM C597
The Ultrasonic Pulse Velocity Tester is a non-destructive testing instrument used to assess the quality, uniformity, and internal condition of concrete and other cement-based materials. The system determines ultrasonic pulse velocity through a test specimen, providing valuable information for evaluating concrete integrity and detecting potential internal defects.
It is widely used in civil engineering and construction material laboratories for quality assessment and research applications. The instrument can support the evaluation of concrete structures without causing significant damage to the tested specimen.
Applications:
- Non-destructive testing of concrete
- Concrete quality and uniformity assessment
- Detection of internal defects and discontinuities
- Evaluation of concrete structures
- Civil engineering laboratory testing
- Construction quality control
- Research and material testing
- University and technical institute laboratories
Key Features
- ✓ Non-destructive test to determine cracks, voids, faults presence in concrete structures. LCD display 128x60 pixel. Battery operated rechargeable. Portable with anti-shock case. Supplied complete with calibrating cylinder and contact paste.
Technical Specifications
Measuring range: 0 - 3000 μs - resolution ± 0.1 μs - Selection of the ultrasonic pulse amplitude adjustable from 250 to 1000 V - Measurement of the time required by the ultrasonic pulse to go through the tested material. - Single or continuous acquisition mode with automatic or manual saving. - Zero calibration with depuration of the time for the pulse to go through the probes. - Battery duration: 6 to 8 hours. - Capacity of data acquisition, processing and filing of the test data up to 30.000 samples. - Interface mini USB for PC connection. - Two outlets for connection to the oscilloscope. - Languages: English, French, German, Spanish, Italian. - The use of the instrument is made easy because it is based on the user-friendly system.
Accessories

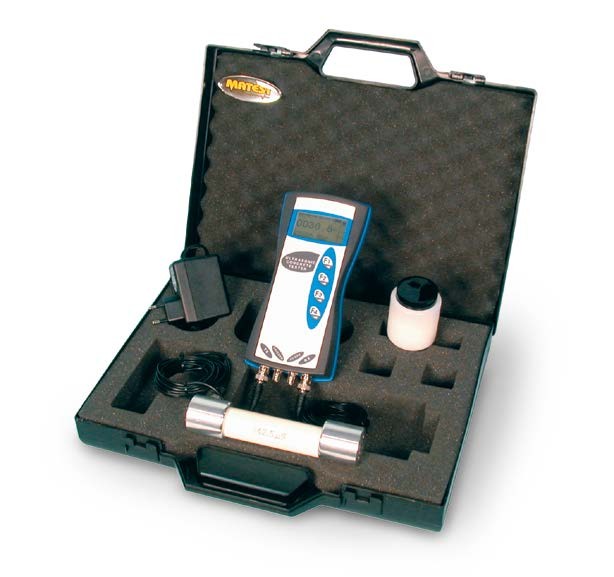

- The instrument in basic configuration in a practical palmer container. - Two 55kHz probes with connection cables. - Battery rechargeable pack NiMh 4.8V > 2000mA/h with low battery condition alarm. - External feeder 230V and battery charger 12V 500mA.
- Case dimensions: 400x340x110mm Weight: 2 kg approx.
