Concrete Testing

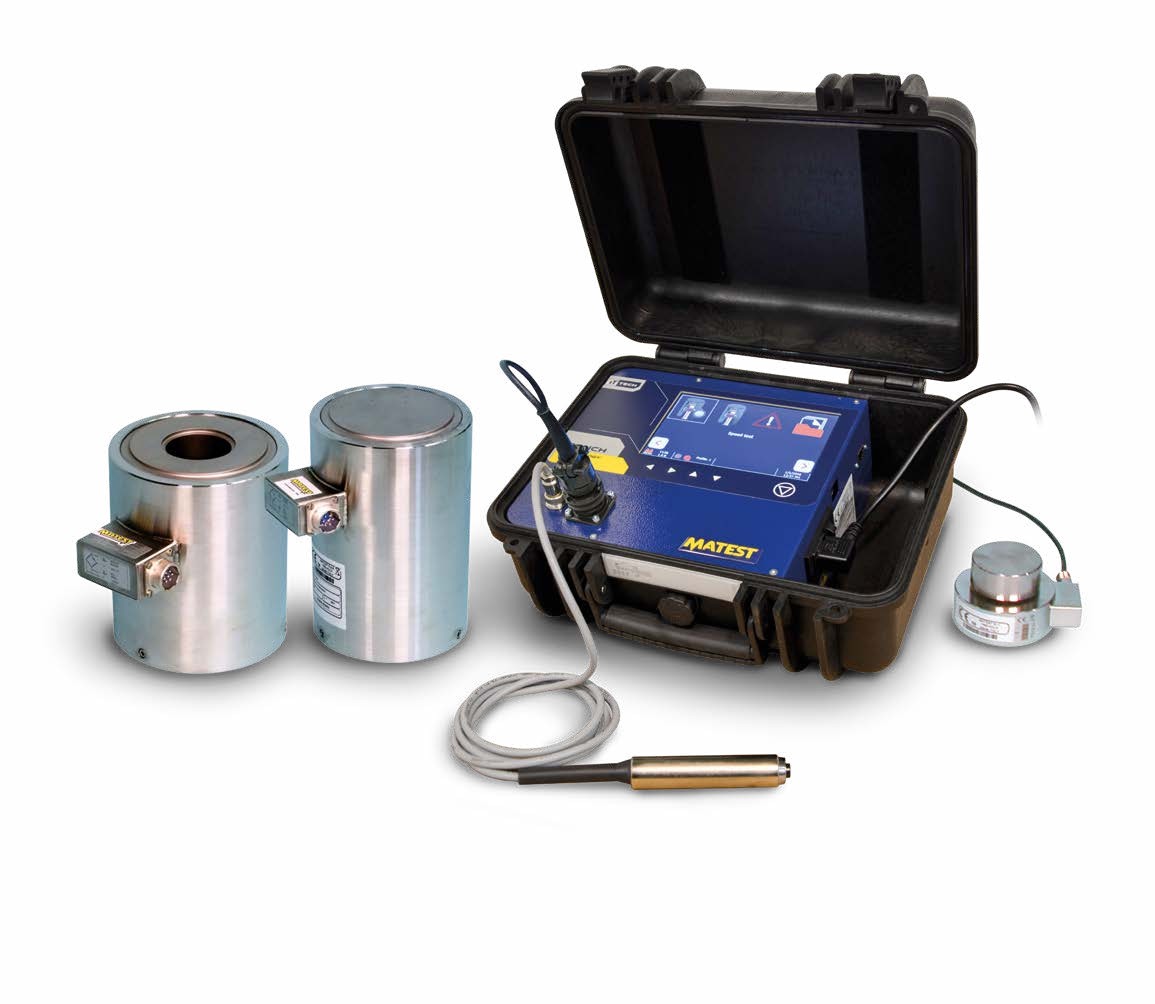

UNIVERSAL DIGITAL TESTER WITH MICROPROCESSOR FOR LOAD CELLS
CYBER-PLUS PROGRESS, 8 CHANNELS
This user friendly menu driven digital display, connected to load cells (C140 and C142 series) allows to perform an accurate veri- fication load readings from different machines and to produce the corresponding certificate.The instrument foresees three memorized cycle verification program composed of ten measurements each.
At the end of the test the unit automatically elaborates the stored value and displays:Effective applied load;Measured load (over three verification cycles);Average measured load; Accuracy in %;Repeatability; Relative readability; Max error.The tester’s accuracy is ± 0.5% of the indicated load.
FIRMWARE:- Software administration up to ten load cells. Possibility to use one cell at a time, selectable among with the ones correctly configured and installed- Load measuring range: kN, kg, lb- Date of test and/or calibration- Steps linearization or polynomial curve.
Visualization of all the device data of the selected cell- Date and time- Available languages: Italian, English, French, German and Spanish, Polish
This user friendly menu driven digital display, connected to load cells (C140 and C142 series) allows to perform an accurate veri- fication load readings from different machines and to produce the corresponding certificate.The instrument foresees three memorized cycle verification program composed of ten measurements each.
At the end of the test the unit automatically elaborates the stored value and displays:Effective applied load;Measured load (over three verification cycles);Average measured load; Accuracy in %;Repeatability; Relative readability; Max error.The tester’s accuracy is ± 0.5% of the indicated load.
FIRMWARE:- Software administration up to ten load cells. Possibility to use one cell at a time, selectable among with the ones correctly configured and installed- Load measuring range: kN, kg, lb- Date of test and/or calibration- Steps linearization or polynomial curve.
Visualization of all the device data of the selected cell- Date and time- Available languages: Italian, English, French, German and Spanish, Polish
- ✓ Up to 5 decimal points visualization.
- ✓ LCD display 800x480 pixel.
- ✓ Large internal memory for load cell calibrations.
- ✓ USB and LAN ports.
- ✓ Language selection.
Product Overview
CYBER-PLUS PROGRESS, 8 CHANNELS
This user friendly menu driven digital display, connected to load cells (C140 and C142 series) allows to perform an accurate veri- fication load readings from different machines and to produce the corresponding certificate.The instrument foresees three memorized cycle verification program composed of ten measurements each.
At the end of the test the unit automatically elaborates the stored value and displays:Effective applied load;Measured load (over three verification cycles);Average measured load; Accuracy in %;Repeatability; Relative readability; Max error.The tester’s accuracy is ± 0.5% of the indicated load.
FIRMWARE:- Software administration up to ten load cells. Possibility to use one cell at a time, selectable among with the ones correctly configured and installed- Load measuring range: kN, kg, lb- Date of test and/or calibration- Steps linearization or polynomial curve.
Visualization of all the device data of the selected cell- Date and time- Available languages: Italian, English, French, German and Spanish, Polish
This user friendly menu driven digital display, connected to load cells (C140 and C142 series) allows to perform an accurate veri- fication load readings from different machines and to produce the corresponding certificate.The instrument foresees three memorized cycle verification program composed of ten measurements each.
At the end of the test the unit automatically elaborates the stored value and displays:Effective applied load;Measured load (over three verification cycles);Average measured load; Accuracy in %;Repeatability; Relative readability; Max error.The tester’s accuracy is ± 0.5% of the indicated load.
FIRMWARE:- Software administration up to ten load cells. Possibility to use one cell at a time, selectable among with the ones correctly configured and installed- Load measuring range: kN, kg, lb- Date of test and/or calibration- Steps linearization or polynomial curve.
Visualization of all the device data of the selected cell- Date and time- Available languages: Italian, English, French, German and Spanish, Polish
Key Features
- ✓ Up to 5 decimal points visualization.
- ✓ LCD display 800x480 pixel.
- ✓ Large internal memory for load cell calibrations.
- ✓ USB and LAN ports.
- ✓ Language selection.
Technical Specification
High resolutionchannel, 24 bit.
Excitationat 5Vcc
Standard signalsfeed + feed – (0V) signal + signal – and shield
Remote push button to facilitate the readingsconfirmation during
