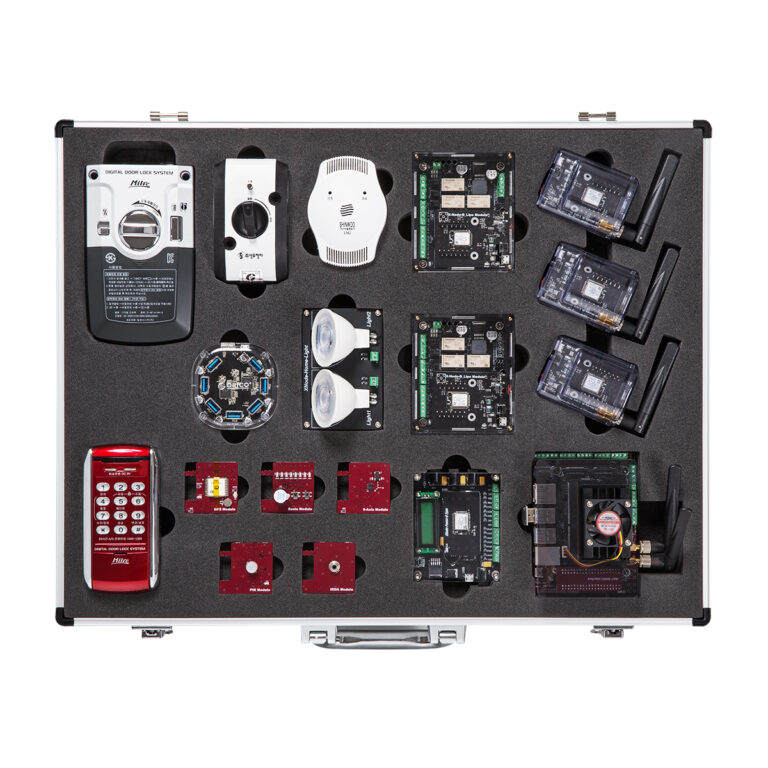

XNode Home

Product Features

• IoT connectivity application training equipment based on wireless personal network (WPAN)
• By using the mesh network method, it can be used in large quantities in a wide range of areas such as wireless control and monitoring, and a wide range of communication is possible
• Provides an environment for building a smart home with devices used in real home appliances such as door locks, gas circuit breakers, gas detectors, fans, and LED lights
• DC power is supplied and measured by the XNode Power board, and the measured usage can be monitored remotely
• Provides sensors such as GPS, IrThermo, IMU, and PIR in addition to the Basic Module
• The sensor node provides a 2100mA battery so that it can be operated independently, and also provides an LED for an indicator, and a light sensor and temperature/humidity sensor based on lux units
• Provided sensor node supports interpreter-style Python 3 to write control programs easily and concisely
• Visual Studio Code-based integrated development environment for professional application development
• Provides training contents for Python-based sensor nodes

Software Specifications

Hardware Specifications

Software Specifications

Hardware Specifications

Training Contents

1. Components and Concepts of Sensor Network
2. Sensor Network Platform
3. Sensor Network Protocol
4. Sensor Network Development Environment
5. Basic Sensor Control
6. Extension Module Control
7. Zigbee Basic Communication
8. Zigbee Communication Extension
9. Zigbee and BLE
10. Sensor Network Application Project
Appendix
1. Visual Studio Code Add-on
2. Edge Server Initialization
3. Python

Layout
